Illustrating Development:

Investigating use of Visuals in Undergraduate Developmental Biology Education, 2023-2024

Completed under the supervision of Dr. Jonathon Stone of McMaster University in the Stoner Lab, this three-part project was designed to investigate the use of visuals in developmental biology education.

As part of this project, I first completed wet-lab studies on sea urchin specimens, then observed and illustrated these specimens, and finally, used my illustrations to design and execute a formal survey of undergraduate students.

Overall, results showed that students responded best to the visually accessible and engaging visuals that depicted the developmental process, as opposed to visuals that were academic in tone or text alone. Continue below for an in-depth look at each step of the research process.

Part 1: Wet-lab Studies and Observation

Throughout this project, I worked with sea urchin larvae. Sea urchins are well-studied models for development, and their developmental process is often presented to students in introductory development classes.

Sea urchin larvae are known to exhibit abnormal development when exposed to higher-than-normal temperatures. I induced abnormal development in a treatment group of larvae by exposing them to a brief heat shock. I then compared the heat-shocked larvae to a control group which developed under ideal conditions. Control larvae developed normally (A-D), while heat-shocked larvae showed signs of abnormal development (E-F).

Part 2: Creating Illustrations

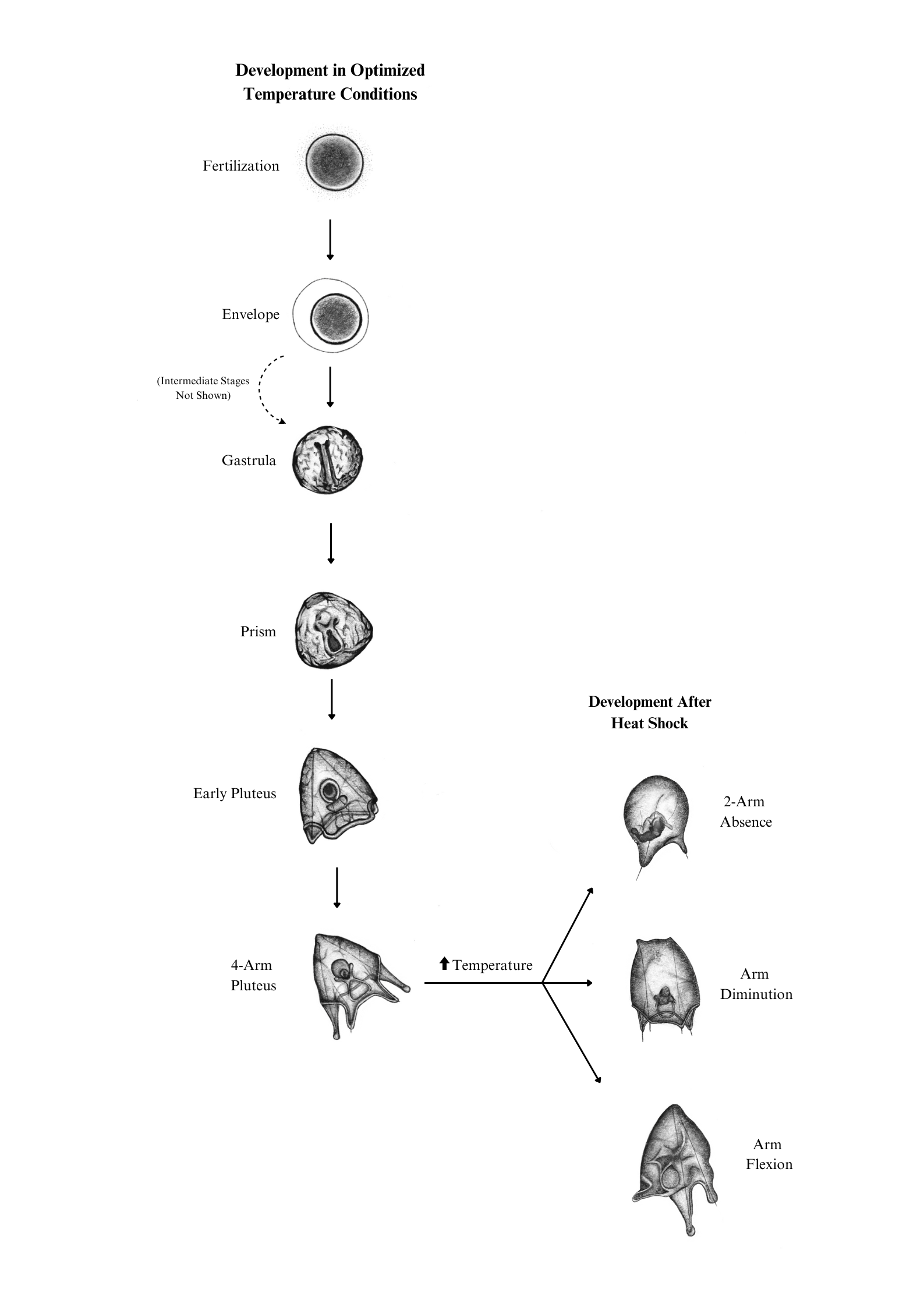

After conducting my heat shock experiment, I created illustrations based on my observations. I started by creating labelled pencil drawings on Procreate, which I then used as the basis for a line-drawn version with an academic tone.

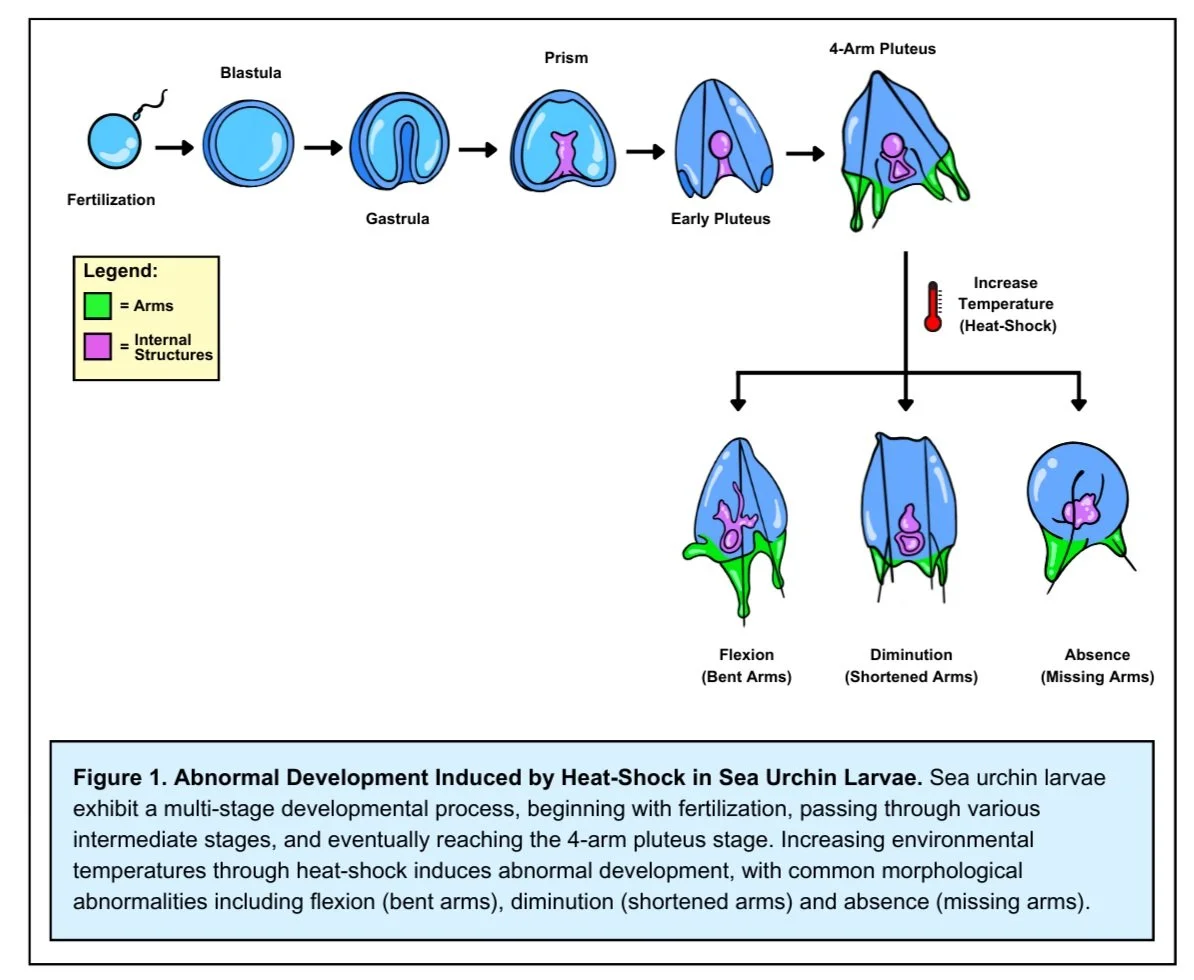

Using Procreate, a simplified and coloured version of the same developmental process was illustrated. The goal here was to make the visual engaging and understandable.

Part 3: Investigating Effectivness Through Survey

The final phase of this project involved the creation and distribution of an anonymous randomized survey targeted toward undergraduate students. The aim was to investigate which visuals, if any, aided in undergraduate students’ understanding of the process of abnormal sea urchin development. 114 undergraduate students were surveyed and presented with one of three treatment questions that explored which form of communication allowed them to best understand abnormal development in sea urchins:

  1. Text-only explanation

  2. Academically toned illustration (“scientific figure”)

  3. Simplified and coloured illustration (“textbook figure”)

Students were asked to analyze the treatment that they were presented with, and then rank how well they understood the concept of abnormal development in sea urchin larvae based on that treatment. Results showed that students presented with the simplified and coloured illustration understood this concept best.

This visualization study helped demonstrate that, in the case of introductory developmental biology education, simplified and engaging illustrations prevail over highly detailed academic illustrations or text alone. These results could help inform how visual resources are designed for students learning introductory development.

Conclusion

  • Akhiljith PJ, Liya VB, Rojith G, Zacharia PU, Grinson G, Ajith S, Lakshmi PM, Sajna VH, Sathianandan TV. 2019. Climatic projections of Indian Ocean during 2030, 2050, 2080 with implications on the fisheries sector. J. Coast. Res. [accessed 15 January 2024]; 86: 198-208. doi: https://doi.org/10.2112/SI86-030.1

    Bobek E, Tversky B. 2016. Creating visual explanations improves learning. Cogn. Res. Princ. Implic. [accessed 2024 January 9]; 1:27. doi: 10.1186/s41235-016-0031-6

    Brierley AS, Kingsford MJ. 2009. Impacts of Climate Change on Marine Organisms and Ecosystems. Curr. Biol. [accessed 9 January 2024]; 19. doi: 10.1016/j.cub.2009.05.046

    Chino Y, Saito M, Yamasu K, Suyemitsu T, Ishihara K. 1993. Formation of the adult rudiment of sea urchins is influenced by thyroid hormones. Dev. Biol. [accessed 28 September 2023]; 161:1-11. doi: https://doi.org/10.1006/dbio.1994.1001.

    Cresswell S, Lloyd DJ. 1913. On methods of producing artificial parthenogenesis in echinus esculentus and the rearing of the parthenogenetic plutei through metamorphosis. J. Cell Sci. [accessed 26 October 2023]; 58(231):523-552. doi: https://doi.org/10.1242/jcs.s2-58.231.523

    Farmanfarmaian A, Giese AC. 1963. Thermal tolerance and acclimation in the Western purple sea urchin Strongylocentrotus purpuratus. Pyhsiol. Zool. [accessed 12 January 2024]; 36(3):237-243. doi: https://doi.org/10.1086/physzool.36.3.30152309

    Giudice G, Sconzo G, Roccheri MC. 2002. Studies on heat shock proteins in sea urchin development. DGD. [accessed 27 March 2024]; 41(4):375-380. doi: https://doi.org/10.1046/j.1440-169x.1999.00450.x

    Gulev SK. 2023. Global Climate Change and the Oceans. Stud. Russ. Econ. Dev. [accessed 9 January 2024]; 34:738-745. doi: https://doi.org/10.1134/S1075700723060060

    Hammond LM, Hofmann GE. 2010. Thermal tolerance of Strongylocentrotus purpuratus early life history stages: mortality, stress induced gene expression and biogeographic patterns. Mar. Biol. [accessed 9 January 2024];157(12): 2677-2687. doi: 10.1007/s00227-010-1528-z

    Harianto J, Nguyen DH, Holmes SP, Byrne M. 2018. The effect of warming on mortality, metabolic rate, heat-shock protein response and gonad growth in thermally acclimated sea urchins. Mar. Biol. [accessed 28 March 2024]; 165(96). doi: https://doi.org/10.1007/s00227-018-3353-8

    Hollowed AB, Barange M, Garçon V, Ito S, Link JS, Aricò S, Batchelder H, Brown R, Griffis R, Wawrzynski W. 2019. Recent advances in understanding the effects of climate change on the world’s oceans. ICES J. Mar. Sci. [accessed 9 January 2024]; 76(5):1215-1220. doi: https://doi.org/10.1093/icesjms/fsz084

    Lin YY, Holmqvist K, Miyoshi K, Ashida H. 2017. Effects of detailed illustrations on science learning: an eye-tracking study. Instr. Sci. [accessed 28 March 2024]; 45:557-581. doi: https://doi.org/10.1007/s11251-017-9417-1.

    McGrath MB, Brown JR. 2005. Visual learning for science and engineering. IEEE CG&A. [accessed 13 October 2023]; 25(5):56-63. doi: 10.1109/MCG.2005.117.

    Mejía-Gutiérrez LM, Benítez-Villalobos F, Díaz-martínez JP. 2019. Effect of temperature increase on fertilization, embryonic development and larval survival of the sea urchin Toxopneustes roseus in the Mexican south pacific. J. Therm. Biol. [accessed 12 January 2024]; 83:157-164. doi: https://doi.org/10.1016/j.jtherbio.2019.05.011

    Oluwakemi O, Omoniyi T. 2015. Colour in learning: its effect on the retention rate of graduate students. JEP. [accessed 27 March 2024]; 6(14): 1-5. Available at: https://eric.ed.gov/?id=EJ1080132

    Pearse JS. 2006. Ecological role of purple sea urchins. Science. [accessed 12 January 2024]; 314(5801): 940-941. doi: 10.1126/science.1131888

    Poloczanska ES, Burrows MT, Brown MT, Brown CJ, Molinos JG, Halpern BS, Hoegh-Guldberg O, Kappel CV, Moore PJ, Richardson AJ, et al. 2016. Responses of marine organisms to climate change across oceans. Front. Mar. Sci. [accessed 9 January 2024]; 3. doi: https://doi.org/10.3389/fmars.2016.00062

    Scheufele DA. 2014. Science communication as political communication. PNAS. [accessed 27 October 2023]; 111(4): 13585-13592. doi: https://doi.org/10.1073/pnas.1317516111

    Smith MM, Smith LC, Cameron RA, Urry LA. 2008. The larval stages of the sea urchin Strongylocentrotus purpuratus. J. Morphol. [accessed 18 September 2023]; 269:713-733. doi:  https://doi.org/10.1002/jmor.10618

    Tang KHD. 2020. Implications of climate change on marine biodiversity. Glob. J. Agric. Soil Sci. [accessed 10 January 2024]; Available from: https://www.researchgate.net/publication/339916763_Implications_of_Climate_Change_on_Marine_Biodiversity

    Tobias S. 1994. Interest, prior knowledge, and learning. Rev. Educ. Res. [accessed 28 March 2024]; 64(1):37-54. doi: https://doi.org/10.3102/00346543064001037
